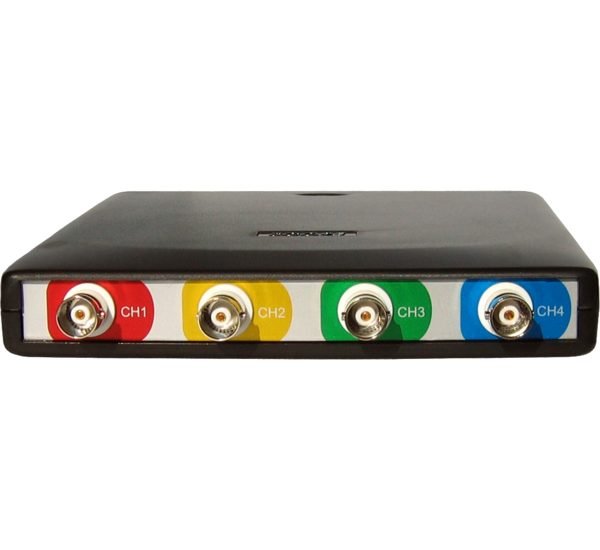

The USB labscope packed with technology
Price: € 2,219.00
Key specifications
- 14 bit (0.006 %) resolution (16 bit enhanced resolution)
- Up to 1 GSa/s sampling
- 250 MHz bandwidth
- Up to 200 MSa/s continuous streaming
- Up to 256 Mpoints memory per channel
- 0.25 % DC vertical accuracy, 0.1 % typical
- 1 ppm time base accuracy
Full specifications Manual Request info
Order code: ATS610004D-XMSG
EAN: 7423634563582
Price: 2,219.00
This powerful USB 3.0 super speed automotive oscilloscope combines fast sampling up to 1 GSa/s with high resolutions of 12, 14 and 16 bit and a large memory of 64 Mpoints on all four channels. Additionally, the automotive oscilloscope supports continuous streaming measurements up to 200 MSa/s.
The Automotive Test Scope ATS610004D-XMSG is delivered with SureConnect connection test and resistance measurement on each channel.
Also, the Automotive Test Scope ATS610004D-XMSG is delivered with SafeGround. With SafeGround you can switch the differential inputs of the Automotive Test Scope ATS610004D-XMSG into single ended inputs with ground protection. It allows to make measurements using standard attenuating probes and protects the scope when a short circuit to ground is created.
Safe measuring
The Automotive Test Scope ATS610004D-XMSG is a four channel automotive oscilloscope with differential inputs. With the differential inputs it is possible to measure four totally unrelated signals simultaneously. It is no longer possible to create a short circuit through the oscilloscope or through a second device connected to your computer and to the car, like e.g. a fault code scanner. So no risk of damaging the car, the oscilloscope or the computer.
Differential / single ended switchable inputs with SafeGround protection
SafeGround gives the possibility to use the oscilloscope inputs both as single ended and as differential. When SafeGround is active and you accidentally create a wrong connection that causes a short circuit, SafeGround will disconnect the ground of the input channel without damaging the oscilloscope or PC. You can therefore simply switch from a differential input to a single ended input without worrying if anything will damage because of a short circuit current. The Automotive Test Scope ATS610004D-XMSG is the only automotive oscilloscope in the world with this unique SafeGround protection. And as you all know, a connection mistake is easily made, which will now have no more strange and financial consequences because of SafeGround as the short circuit current is limited thanks to SafeGround.
SafeGround is default available on each channel of the Automotive Test Scope ATS610004D-XMSG.
SureConnect
The SureConnect connection test feature of the Automotive Test Scope ATS610004D-XMSG tells you immediately whether your test probe or clip actually makes electrical contact or not. No more doubt whether your probe doesn't make contact or there really is no signal.
This is useful when surfaces are oxidized and your probe cannot get a good electrical contact. Simply activate the SureConnect and you know whether there is contact or not. Also when back probing connectors in confined places, SureConnect immediately shows whether the probes make contact or not.
SureConnect is default available on each channel of the Automotive Test Scope ATS610004D-XMSG.
Resistance measurement
Many automotive sensors are based on variable resistors. Use your Automotive Test Scope ATS610004D-XMSG in the resistance setting to test them, no more need to take a separate ohm meter. Resistance values can be displayed as a number, but it is also possible to display the resistance variation in time, in a graph.
The unique Automotive Test Scope ATS610004D-XMSG Ohm scope is the first fast automotive Ohm scope in its class.
Large memory
When measuring at high sample rates, a long record length/large memory is necessary to be able to record a complete signal in the acquisition buffer. Where most oscilloscopes have 2.5 kpoints or 100 kpoints memory, the Automotive Test Scope ATS610004D-XMSG has up to 256 Mpoints memory per channel, depending on the selected resolution and the number of active channels. When measuring at 14 bit resolution and all four channels, the available memory is 32 Mpoints per channel. This gives the user 300 to 100000 times more memory.
An advantage of a large memory is that once-only fast phenomena can be captured accurately or complete serial communication signal blocks can be measured all at once. For example complete serial communications, like CAN bus signals, can be measured all in one record to be reviewed and analyzed afterwards.
High accuracy
The Automotive Test Scope ATS610004D-XMSG measures with high resolutions of 14 and 16 bit. A signal measured with the Automotive Test Scope ATS610004D-XMSG therefore has 256 times more resolution than most standard automotive oscilloscopes, which usually have a low resolution of 8 or 9 bit. The input circuit of the Automotive Test Scope ATS610004D-XMSG has a high accuracy of 0.25 % of the full scale input range, where most standard automotive oscilloscopes have an accuracy of 2 - 3 % of the full scale range. The precision Automotive Test Scope ATS610004D-XMSG allows for measuring signals with much more accuracy.
Automotive Test Scope ATS610004D-XMSG specifications
The tables below show detailed specifications of the Automotive Test Scope ATS610004D-XMSG. Jump to specifications regarding
Acquisition system | |||||
|---|---|---|---|---|---|
| Number of input channels | 4 analog | ||||
| CH1, CH2, CH3, CH4 | Isolated BNC, female | ||||
| Type | Differential input | ||||
| Resolution | User selectable in software | ||||
| Native | 8, 12, 14 bit | ||||
| Enhanced | 16 bit | ||||
| DC Accuracy | 0.25 % (0.1 % typical) of full scale ± 1 LSB at 20°C to 25°C To achieve rated accuracy, allow the instrument to settle for 20 minutes. When subjected to extreme temperatures, allow additional time for internal temperatures to stabilize. | ||||
| Noise | 305 µVrms (200 mV range, 12 bit, 50 MSa/s) 90 µVrms (200 mV range, 16 bit, 6.25 MSa/s) | ||||
| Ranges (full scale) | ±200 mV ±400 mV ±800 mV | ±2 V ±4 V ±8 V | ±20 V ±40 V ±80 V | ||
| Coupling | AC/DC | ||||
| Impedance | 2 MOhm / 12 pF ± 1 % 1 MOhm / 20 pF ± 1 % when SafeGround enabled | ||||
| Maximum voltage | 200 V (DC + AC peak < 10 kHz) | ||||
| Maximum Common Mode voltage | 200 mV to 800 mV ranges 2 V 2 V to 8 V ranges : 20 V 20 V to 80 V ranges : 200 V | ||||
| Common Mode Rejection Ratio | -47 dB | ||||
| Bandwidth | |||||
| -3dB at 75 % of full scale input | 250 MHz | ||||
| Limit, selectable per channel | Off (250 MHz), 150 MHz, 100 MHz, 50 MHz | ||||
| AC coupling cut off frequency (-3dB) | ±1.5 Hz | ||||
| SureConnect | |||||
| Maximum voltage on connection | 200 V (DC + AC peak < 10 kHz) | ||||
| Resistance measurement | |||||
| Ranges | 100 Ω 200 Ω 500 Ω | 1 kΩ 2 kΩ 5 kΩ | 10 kΩ 20 kΩ 50 kΩ | 100 kΩ 200 kΩ 500 kΩ | 1 MΩ 2 MΩ |
| Accuracy | 1 % of full scale | ||||
| Response time (to 95%) | < 10 µs | ||||
| SafeGround | |||||
| Maximum voltage on connection | 200 V (DC + AC peak < 10 kHz) | ||||
| Maximum switch off current | 500 mA | ||||
| Response time | < 100 ns | ||||
| Maximum sampling rate | 8 bit | 12 bit | 14 bit | 16 bit | |
| measuring one channel | 1 GSa/s | 500 MSa/s | 100 MSa/s | 6.25 MSa/s | |
| measuring two channels | 500 MSa/s | 200 MSa/s | 100 MSa/s | 6.25 MSa/s | |
| measuring three or four channels | 200 MSa/s | 100 MSa/s | 100 MSa/s | 6.25 MSa/s | |
| Maximum streaming rate 1 | 8 bit | 12 bit | 14 bit | 16 bit | |
| measuring one channel | 200 MSa/s 2 | 100 MSa/s 3 | 100 MSa/s 3 | 6.25 MSa/s 6 | |
| measuring two channels | 100 MSa/s 3 | 50 MSa/s 4 | 50 MSa/s 4 | 6.25 MSa/s 6 | |
| measuring three or four channels | 50 MSa/s 4 | 25 MSa/s 5 | 25 MSa/s 5 | 6.25 MSa/s 6 | |
| Sampling clock source | |||||
| Internal | TCXO | ||||
| Accuracy | ± 0.0001 % | ||||
| Stability | ± 1 ppm over 0°C to 55°C | ||||
| Time base aging | ±1 ppm/year | ||||
| External | LVDS, on CMI connectors | ||||
| Input range | 10 MHz ± 1 % 16.369 MHz ± 1 % | ||||
| Memory | 8 bit | 12, 14, 16 bit | |||
| Measuring one channel | 256 Mpoints per channel | 128 Mpoints per channel | |||
| Measuring two channels | 128 Mpoints per channel | 64 Mpoints per channel | |||
| Measuring three or four channels | 64 Mpoints per channel | 32 Mpoints per channel | |||
| Trigger | Only available in scope/block mode, not in streaming mode | ||||
| System | Digital, 2 levels | ||||
| Source | CH1, CH2, CH3, CH4, OR, digital external | ||||
| Trigger modes | Rising edge, Falling edge, Any edge Inside window, Outside window, Enter window, Exit window (time conditions only on Ch1) Pulse width (only on Ch1) Interval (only on Ch1) | ||||
| Level adjustment | 0 to 100 % of full scale | ||||
| Hysteresis adjustment | 0 to 100 % of full scale | ||||
| Resolution | 0.006 % (14, 16 bits) / 0.025% (12 bits) | ||||
| Pre trigger | 0 to selected record length, 1 sample resolution | ||||
| Post trigger | 0 to selected record length, 1 sample resolution | ||||
| Trigger hold-off | 0 to 63 MSamples, 1 sample resolution | ||||
| Trigger delay | 0 to 8 GSamples, 1 sample resolution | ||||
| Digital external trigger | |||||
| Input | Extension connector pins 1 and 2 | ||||
| Range | 0 to 2.5 V (TTL) | ||||
| Coupling | DC | ||||
| Jitter | ≤ 1 sample | ||||
Multi-instrument synchronization | |||||
| Using CMI | Synchronizing instruments via CMI is available when all instruments are connected via USB. | ||||
| Maximum number of instruments | Limited by number of available USB ports | ||||
| Synchronization accuracy | 0 ppm | ||||
| CMI interface | 2x, CMI 1, CMI 2 | ||||
| Required coupling cable | TP-C50H Coupling cable CMI | ||||
| Maximum coupling cable length | 50 cm | ||||
| Using WCMI | Synchronizing instruments via WCMI is available when instruments are connected via USB, LAN and WiFi. | ||||
| Maximum number of instruments | No limitation | ||||
| Required coupling module | WCMI - 8, WCMI - 9 | ||||
| Clock synchronization accuracy | ≤ 1 ppm, typical ≤ 0.2 ppm | ||||
| Trigger jitter at sample rate 1 | ≤ 1 MSa/s | > 1 MSa/s | |||
| 2 x "5" | ≤ ±2 samples | ≤ ±2 µs | |||
| "5" and "6" | |||||
| Trigger source "5" | ≤ ±2 samples | ≤ ±2 µs | |||
| Trigger source "6" | ≤ ±8 samples | ≤ ±8 µs | |||
| 2 x "6" | ≤ ±8 samples | ≤ ±8 µs | |||
Probe calibration | |||||
| Output | Extension connector pins 3 (signal) and 6 (ground) | ||||
| Signal | Square wave | ||||
| Level | -1 V to 1 V | ||||
| Frequency | 1 kHz | ||||
Interface | |||||
| Interface | USB 3.0 SuperSpeed (5 Gbit/s); (USB 2.0 HighSpeed compatible) | ||||
Power Requirements | |||||
| Power | From USB port or external input | ||||
| Consumption | 5 VDC 1200 mA max | ||||
| External power | From second USB port or power adapter | ||||
Physical | |||||
| Instrument | |||||
| Height | 25 mm (1 inch) | ||||
| Length | 170 mm (6.7 inch) | ||||
| Width | 140 mm (5.2 inch) | ||||
| Weight | 500 g (17.6 ounce) | ||||
| USB cord length | 1.8 m (70 inch) | ||||
I/O connectors | |||||
| Channel 1, 2, 3, 4 | Isolated BNC, female | ||||
| USB | Fixed cable with USB 3.0 type A connector, 1.8 m | ||||
| Extension connector | D-sub 9 pins female | ||||
| Power | 3.5 mm power socket | ||||
| CMI I/O connectors | 2 x HDMI type C socket | ||||
System requirements | |||||
| PC I/O connection | USB 2.0, USB 3.0 or USB 3.1 | ||||
| Operating system | Windows 10 / 11, 64 bits Linux (via own software based on libtiepie-hw SDK) | ||||
Environmental conditions | |||||
| Operating | |||||
| Ambient temperature | 20°C to 25°C (10°C to 40°C without specifications) | ||||
| Relative humidity | 10 % to 90 %, non condensing | ||||
| Storage | |||||
| Ambient temperature | -20°C to 70°C | ||||
| Relative humidity | 5 % to 95 %, non condensing | ||||
Certifications and Compliances | |||||
| CE mark compliance | Yes | ||||
| RoHS | Yes | ||||
| EN 55011:2009/A1:2010 | Yes | ||||
| EN 55022:2006/A1:2007 | Yes | ||||
| EN 61000-6-1:2007 | Yes | ||||
| EN 61000-6-3:2007 | Yes | ||||
Package contents | |||||
| Instrument | Automotive Test Scope ATS610004D-XMSG | ||||
| Measure leads | 4 x Measure lead TP-C1812B, Differential BNC -> 4 mm banana plug | ||||
| Differential attenuator | 4 x Differential attenuator TP-DA10 | ||||
| Accessories | Handyscope power supply, external power cable for USB port, Probe compensation cable TP-DB9-BNC-30 | ||||
| Software | for Windows 10 / 11, via website | ||||
| Drivers | for Windows 10 / 11, via website | ||||
| Manuals | instrument manual and software user's manuals color printed and digital, via website | ||||
Customer service | |||||
| TiePie engineering instruments are designed, manufactured and tested to provide high reliability. In the unlikely event you experience difficulties, the TiePie engineering instruments are fully warranted for two years. | |||||
| This warranty includes | All parts and labor (excluding probes and/or measure leads) No charge for return shipping Long-term 7 year support Upgrade to the latest software at no charge | ||||
The Automotive Test Scope ATS610004D-XMSG is delivered with:
| Carry case | Carry case BB391 |
|---|---|
| Instrument | Automotive Test Scope ATS610004D-XMSG |
| Measure leads | 4 x Measure lead TP-C1812B, Differential BNC -> 4 mm banana plug |
| Differential attenuator | 4 x Differential attenuator TP-DA10 |
| Alligator clips, large | Alligator Clip TP-AC80I - Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 large alligator clips |
| Alligator clips, medium | Alligator Clip TP-AC10I - Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 medium alligator clips |
| Alligator clips, small | Alligator Clip TP-AC5 - Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 small alligator clips |
| Accessories | Handyscope power supply, external power cable for USB port, Probe compensation cable TP-DB9-BNC-30 |
| Software | for Windows 10 / 11, via website |
| Drivers | for Windows 10 / 11, via website |
| Manuals | instrument manual and software user's manuals color printed and digital, via website |
