Back Probe TP-BP100

Back Probe TP-BP100

€ 8.70

The Back Probe TP-BP100 is a thin and flexible back probe. The back probe can be used on any measuring lead with 4 mm banana plugs.

The Back Probe TP-BP100 features a collar that improves holding grip on the back probe and avoids fingers to slide to the tip where dangerous voltages may be present. The collar has one flat side, to avoid the probe rolling of a tilted surface. The long, thin and flexible tip makes it possible to connect to hard to reach places.

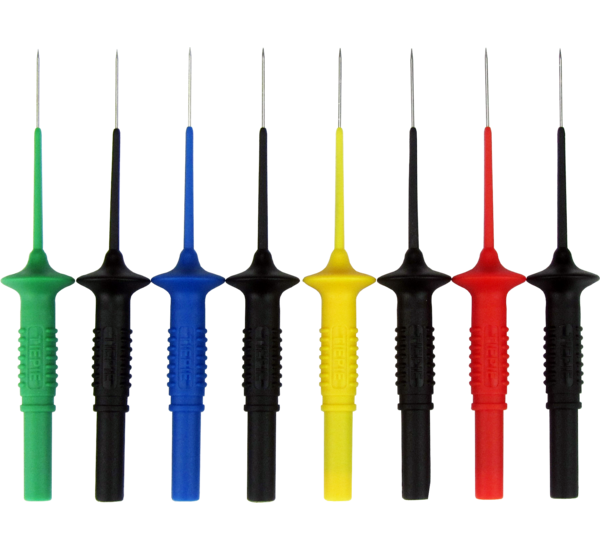

The Back Probe TP-BP100 - Set of 8: Green, Blue, Yellow, Red, 4 Black comes in a set containing 8 back probes, a green one, a blue one, a yellow one, a red one and four black ones. Back probes can also be ordered individually.

  • Back Probe TP-BP100 - Set of 8: Green, Blue, Yellow, Red, 4 Black
  • Back Probe TP-BP100 - Green
  • Back Probe TP-BP100 - Blue
  • Back Probe TP-BP100 - Yellow
  • Back Probe TP-BP100 - Red
  • Back Probe TP-BP100 - Black

Order code: TP-BP100-Set
EAN: 7423621593509
Price: 55.70

Category: Alligator clips & test probes

The Back Probe TP-BP100 is very useful in back probing connectors to measure in an existing circuit without having to use a break out box or damage the wire isolation. The long, thin and flexible pins can easily be slid between the connector housing and the contacts in the connector.

Figure 1 shows the Back Probe TP-BP100 in use on a sensor measurement and figure 2 shows the Back Probe TP-BP100 in use with the Handyscope HS6 DIFF and Measure lead TP-C812B.

Back probes in use on a sensor measurement.
Figure 1: Back probes in use on a sensor measurement.
Back probes in use with scope and measure leads.
Figure 2: Back probes in use with scope and measure leads.

The table below shows detailed specifications of the Back Probe TP-BP100.

Each back probe

Connector4 mm banana socket
Rated voltage1000 V CAT II
Dimensions
Length102 mm
Width9 mm
Collar width16 mm
Tip
Diameter0.6 mm
Total length45 mm
Unisolated length18 mm
Weight5.8 g
Colorgreen, blue, yellow, red or black

The Back Probe TP-BP100 is available in 5 different colors or in one set of 8:

Order codeEANPrice
TP-BP100-Set7423621593509€ 55.70
TP-BP100-Green7423621478462€ 8.70
TP-BP100-Blue7423621533505€ 8.70
TP-BP100-Yellow7423621553572€ 8.70
TP-BP100-Red7423621570586€ 8.70
TP-BP100-Black7423621582558€ 8.70

The Back Probe TP-BP100 - Set of 8: Green, Blue, Yellow, Red, 4 Black is delivered with:

AmountItem
1 Back Probe TP-BP100 - Green
1 Back Probe TP-BP100 - Blue
1 Back Probe TP-BP100 - Yellow
1 Back Probe TP-BP100 - Red
4 Back Probe TP-BP100 - Black
